That small coaxial connection is the original way many players experienced Sonic the Hedgehog, Streets of Rage, and Mortal Kombat. If your search was “how connect Sega Genesis RF,” the job is usually simple: match the correct RF hardware to your Genesis model, connect it to the TV’s antenna input, then tune the TV to channel 3 or 4. The details matter, though. One wrong adapter or TV setting can leave you with static, a black screen, or no signal at all.
RF is not the sharpest way to play a Sega Genesis, but it can be the right choice when you are using a period-correct CRT television or working with the accessories already included with an original console. Handle the connection carefully, especially with 30-year-old cables and ports, and you can get back to playing without forcing anything.
Before connecting cables, look at the back of your console. Sega Genesis models do not all use the same RF setup.
The original Genesis Model 1 typically has a dedicated round RF OUT jack on the rear of the console. An RF switch box or coaxial RF cable connects there, then runs to the television. Many original switch boxes also have a short lead for an antenna or cable source, allowing the switch to pass through television reception when the console is off.
Genesis Model 2 and Model 3 consoles use different rear port layouts. Their RF adapters commonly plug into the console’s multi-pin A/V output instead of a separate RF OUT jack. Do not try to force a Model 1 RF cable into a Model 2 or Model 3 console. The connector may look close enough at a glance, but it is not interchangeable.
If you have an unmarked cable, inspect both ends. The TV end should be a threaded coaxial connector or a coax lead designed for an older switch box. The console end must match your Genesis model exactly. A loose, bent, or heavily corroded connector can cause signal problems that look like a bad console.
Turn off the Sega Genesis and television before making connections. This is less about modern electrical risk and more about protecting aging ports and avoiding confusion while you troubleshoot.

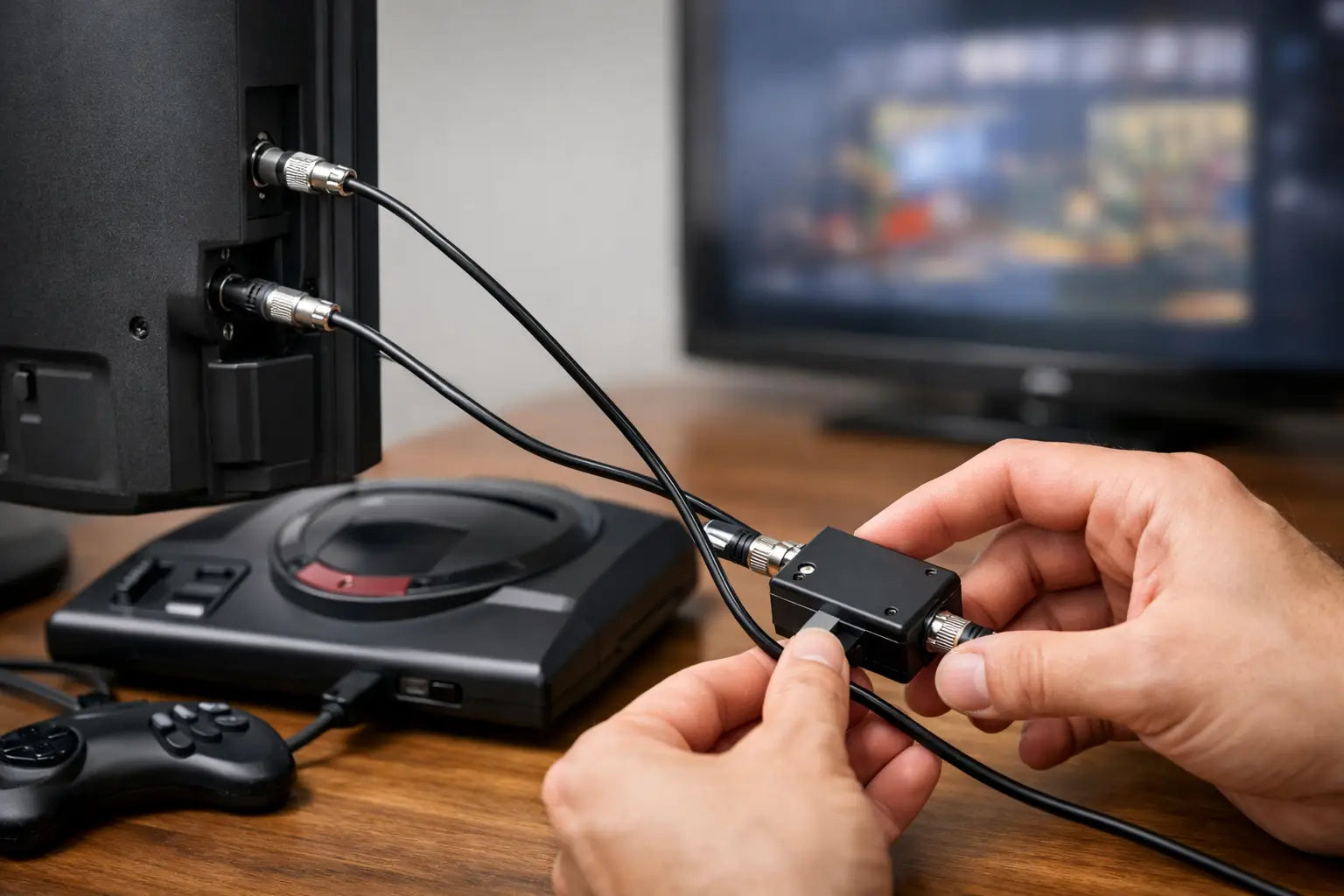

Connect the RF adapter or RF switch to the appropriate output on the Genesis. On a Model 1, this is normally the dedicated RF OUT port. On later models, use the RF adapter made for that model’s A/V port. Tighten threaded coax connectors until they are snug, but never use tools or overtighten them. Older plastic fittings can crack.
Next, connect the RF cable to the television’s antenna input. On most CRTs and many early flat-panel TVs, this is a round, threaded jack labeled ANT IN, ANTENNA, CABLE, RF IN, or VHF/UHF. If your original switch box has separate connections for the TV and an antenna, make sure the lead marked TV goes to the television.
Some very old televisions use two flat screw terminals instead of a round coaxial input. In that case, you need a 75-ohm-to-300-ohm matching transformer, sometimes called a coax-to-twin-lead adapter. It is a small part, but it is necessary for a stable connection.
Finally, find the channel selector on the RF switch or adapter. It will usually be set to channel 3 or channel 4. Set it to one channel, power on the Genesis with a game cartridge inserted, and tune the television to that same channel.
A common issue is that the television is looking for a modern input instead of its analog tuner. Use the TV remote or front-panel controls to select TV, Antenna, or Cable input. Do not select HDMI, AV, Component, or another external input when using RF.
With the Genesis powered on, tune the television to channel 3 or 4, matching the RF switch setting. On older CRT televisions, this may be as easy as pressing the channel buttons. On newer TVs with a coax input, you may need to run a channel scan first. Choose an antenna or cable scan based on your TV’s menu options, then manually return to channel 3 or 4.
If channel 3 is occupied by a local broadcast signal or shows persistent interference, move the selector on the Genesis RF adapter to channel 4 and tune the TV to channel 4. Pick whichever channel produces the cleaner image and sound.
Keep in mind that some modern televisions no longer include an analog tuner, even if they have a coaxial connection. A coax jack does not automatically mean the TV can display an analog Genesis RF signal. If a channel scan finds only digital stations and channel 3 or 4 remains blank, check your TV manual or specifications for analog NTSC tuner support.
Original RF switch boxes were designed for televisions that had only one antenna input. They allow the TV to receive its regular antenna or cable feed when the console is off, then switch to the Genesis when the console is powered on.
For this setup, connect the incoming antenna or cable line to the switch box input, connect the switch box TV lead to the television, and connect the Genesis lead to the console. If you do not use an antenna or cable feed, leave that input disconnected unless the specific switch box requires a pass-through connection.
These switch boxes are convenient for an authentic setup, but they are also a frequent source of weak or intermittent video. Their internal switching components age, and their short coax leads can become damaged near the strain relief. If the picture flickers when you move the cable, the switch box may be the problem rather than the Genesis.
RF combines video and audio into one analog television signal, so its image will naturally be softer than composite A/V, S-Video, RGB, or modern HDMI solutions. Still, it should be playable. Heavy snow, rolling picture, or silence usually points to a setup issue.
Start with the basics: confirm the console has power, the power light is on if your model has one, and the cartridge is fully seated. Then verify that the TV is on the correct input and the same channel selected on the RF switch.
If the screen shows only static, try these checks:
RF makes sense when authenticity is part of the experience. A Genesis connected to a CRT over channel 3 has the look, sound, and slight softness many players remember. It is also useful when a television has no available composite inputs but does have an analog antenna tuner.
The trade-off is picture quality. RF is more vulnerable to interference, produces less defined colors, and can make text harder to read. If your TV supports composite input, the yellow video and red-and-white audio connection will usually offer a noticeably cleaner result. The original Model 1 Genesis may require the appropriate A/V cable and may output mono audio through its rear A/V port, while the headphone jack can provide stereo with the correct setup.
For collectors, the best choice depends on the display and the goal. Use RF for a period-correct CRT setup, composite for a straightforward improvement on compatible televisions, or a quality scaler and higher-grade video cable when playing on a modern display. Avoid cheap, untested adapters that promise universal compatibility, since many add lag, poor scaling, or unreliable signal conversion.
A tested console, the correct model-specific RF adapter, and a cable in good condition remove most of the guesswork. Retro Gaming of Denver refurbishes and tests vintage hardware, with a free 90-day warranty and 14-day returns for added confidence when replacing a questionable console accessory.
Once channel 3 or 4 is showing that familiar Sega startup screen, leave the cables in place and enjoy the setup. The cleanest connection is not always the most nostalgic one, but the right connection is the one that gets your original Genesis games back on screen.
