A PS2 that loads one game perfectly, then stares at another disc like it has never seen one before, is giving you one of the classic PlayStation 2 laser replacement signs. The console may spin the disc, show the browser screen, or make repeated clicking and seeking noises without ever reaching the game. Before ordering parts, though, it helps to separate a truly worn laser from a dirty disc, aging motor, loose ribbon cable, or compatibility issue.
For players rebuilding a PS2 library, the goal is not simply to get one title working. It is to make sure the console can reliably read the mix of CD-based games, DVD-based games, blue-bottom discs, and movies you actually plan to use.
The clearest symptom is selective disc reading. A PS2 may boot silver CD-ROM games but refuse DVD-ROM games, or it may read DVDs while failing to recognize blue-bottom PS2 CDs. This can happen because the optical assembly uses different laser wavelengths for CD and DVD media. One side of the laser can weaken before the other.
A console that displays “Disc Read Error,” returns to the system browser, or repeatedly says there is no data disc also deserves attention. Those messages are not automatic proof that the laser is bad, but they are a strong reason to test further. If several known-good, clean discs fail in the same way, the optical drive is a more likely culprit than the games.
Slow loading is another common warning. Long pauses before menus appear, unusually lengthy level loads, music that skips, and full-motion video that stutters can all point to weak reading performance. A game might still start, yet struggle as it accesses data farther into the disc. That is often the stage where a console feels inconsistent rather than completely dead.
Listen to the drive as well. Normal disc spin-up and light seeking are expected. Repeated clicking, constant attempts to refocus, grinding, or a disc that spins briefly and stops can indicate that the system cannot establish a stable read. Mechanical issues can create similar sounds, so this is a diagnostic clue rather than a final verdict.
Start with the disc itself. Check both sides of the disc under bright light for fingerprints, haze, deep scratches, cracks near the center ring, or resurfacing damage. A single damaged game can imitate a failing laser very convincingly. Use a soft microfiber cloth and wipe straight from the center outward, not in circles.
Then test more than one format. If available, try a known-working PS2 CD game, a standard PS2 DVD game, and a DVD movie. Original PlayStation games can also be useful for testing on backward-compatible PS2 models. Write down what works and what does not. A pattern is more useful than a general impression that the console “reads discs sometimes.”
Test from a cold start and after the console has been running for 20 to 30 minutes. Some aging systems behave differently once warm. Also place the console in the orientation it will normally use. An older fat PS2 that only reads games standing vertically, or only lying flat, may have a drive alignment or mechanical issue beyond a simple dirty lens.
If every clean, known-good disc fails immediately, inspect the basics before assuming the laser has worn out. Confirm that the disc is seated correctly, the tray or lid closes fully, and the console is receiving stable power. On slim models, a lid sensor problem can prevent proper disc operation. On fat models, tray movement and internal drive components can be part of the issue.
The PS2 library spans multiple disc formats, and that matters when diagnosing a system. Many early PS2 titles used CD-ROMs, often recognized by their blue bottoms. Most later PS2 games are DVD-ROMs with silver bottoms. The console also plays DVD movies, which provides another useful test format.
If blue-bottom games load but silver-bottom DVD games do not, the DVD-reading side of the optical system may be weak. If DVD games work but CD-based games fail, the CD-reading side may be the concern. A console that cannot consistently read either format may have a more broadly worn laser, dirty optics, an issue with the spindle motor, or a damaged laser sled.
This distinction also explains why one person may say a PS2 works fine while another finds it unusable. A collector focused on late-era DVD games may never notice that the system rejects early CD titles. Someone who wants to play a specific blue-bottom favorite may encounter the exact opposite problem.
A dirty lens can reduce reading reliability, especially on a console that has spent years in storage. Professional internal cleaning can remove dust and residue from the optical area and give the drive a fair chance to work as designed. It is often a sensible first step when symptoms are mild and the console has an unknown service history.
Skip the temptation to rely on abrasive lens-cleaning discs. They may not address the real problem, and a failing optical assembly cannot be restored by cleaning alone. Opening a PS2 also carries risks: ribbon cables are fragile, screws vary by model, and incorrect reassembly can create new problems.
Adjusting the laser potentiometer is another commonly discussed shortcut. It can sometimes make a weak laser read temporarily by changing output settings, but it is not a dependable long-term repair. An incorrect adjustment can shorten the life of the laser or make disc reading less stable. For a console you want to keep in regular rotation, replacement with a compatible part and proper calibration is the more reliable path when the laser is genuinely worn.

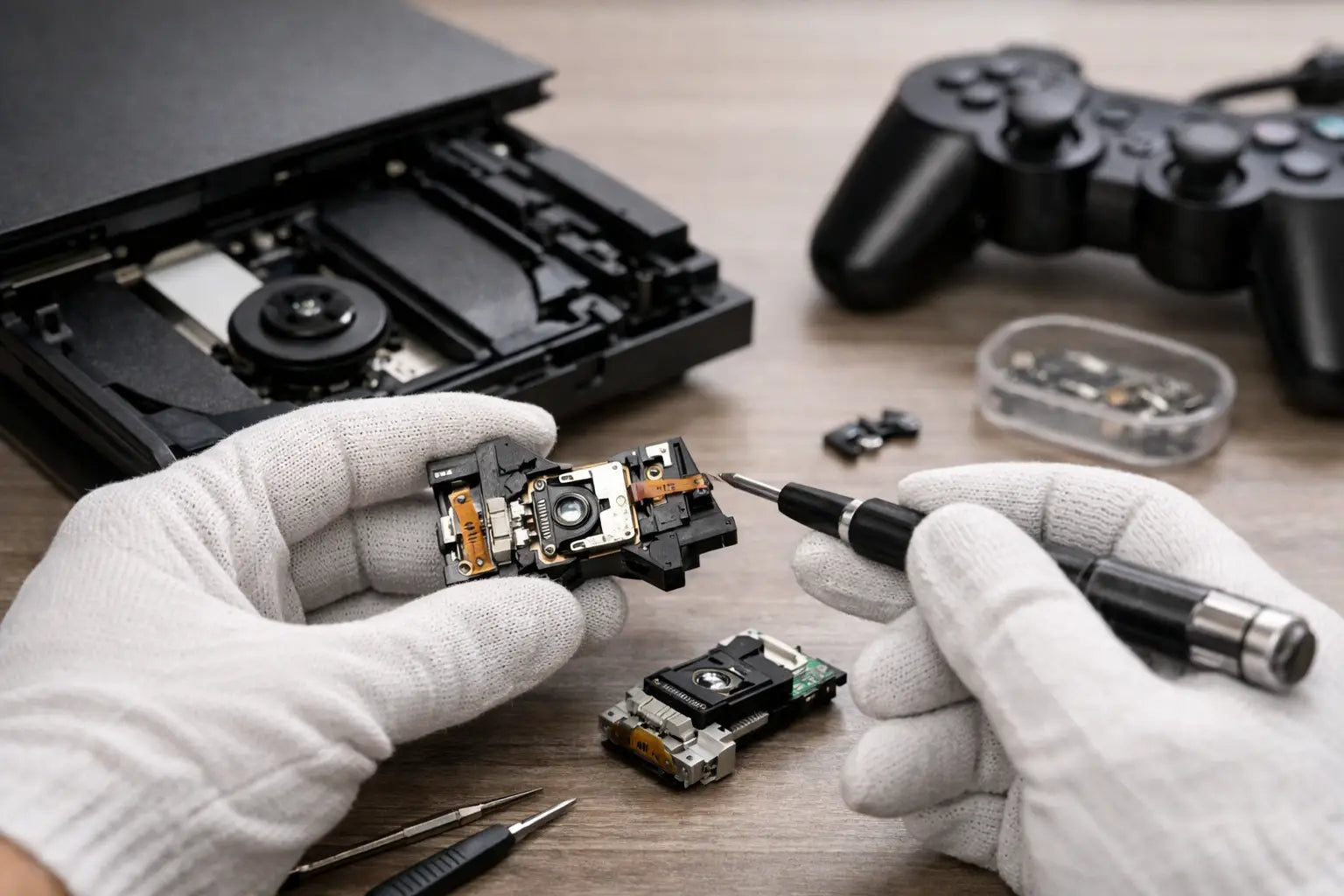

Not every PlayStation 2 uses the same optical assembly. Fat PS2 models and slim models have different internal layouts, and even consoles within the same family may use different laser parts. The model number on the rear label, usually beginning with SCPH-, is essential when identifying a compatible replacement.
This is where many do-it-yourself repairs go wrong. A listing may describe a laser as fitting “PS2,” but compatibility can be more specific than that. The connector style, laser deck, and drive mechanism must match the console. Some replacement lasers also arrive with an anti-static solder bridge that must be removed correctly before installation. Leaving it in place can make the new part appear defective.
A replacement laser is not always the whole answer. If the spindle motor cannot maintain proper speed, the sled gears are worn, the ribbon cable is damaged, or the disc clamp is not holding the disc correctly, a fresh laser may not solve the problem. A proper repair starts with diagnosis, not just parts swapping.
Laser replacement makes sense for an owner who enjoys hardware work, has the correct tools, and wants to preserve a specific console. It can also be worthwhile when the PS2 is otherwise clean, complete, and in good cosmetic condition. For collectors with a favorite model or matching console setup, repair can be part of keeping original hardware alive.
For many players, a tested refurbished console is the lower-risk option. It avoids the uncertainty of used marketplace listings that say “powers on” but do not confirm disc reading across formats. Retro Gaming of Denver focuses on refurbished legacy hardware backed by a free 90-day warranty, which gives buyers a practical layer of protection when they want to play rather than troubleshoot.
The right choice depends on the value of your time, the condition of the console, and how comfortable you are working inside vintage electronics. A low-cost untested PS2 can become expensive once parts, tools, and repeated repairs are involved. On the other hand, a well-maintained console with one clear optical issue may be a strong candidate for service.
Once a PS2 is reading reliably, use clean discs and keep the console in a ventilated, stable location. Avoid moving it while a disc is spinning, and do not stack other electronics directly on top of it. Dust and heat are not the only enemies of old hardware, but reducing both gives the optical drive a better working environment.
Most of all, test the system with the games you actually care about before setting it aside for a future game night. A PS2 that handles your preferred disc formats consistently is worth more than one that merely reaches the startup screen. That small bit of testing now can save you from discovering a laser problem just as the nostalgia session is supposed to begin.
